Wyświetlacz cyfrowy VEVOR 400/450/950 mm Zestaw wyświetlacza liniowego 3-osiowy DRO ze skalą liniową 400/450/950 mm Wyświetlacz cyfrowy VEVOR 400/450/950 mm Zestaw wyświetlacza liniowego 3-osiowy DRO ze skalą liniową 400/450/950 mm Wyświetlacz cyfrowy VEVOR 400/450/950 mm Zestaw wyświetlacza liniowego 3-osiowy DRO ze skalą liniową 400/450/950 mm Wyświetlacz cyfrowy VEVOR 400/450/950 mm Zestaw wyświetlacza liniowego 3-osiowy DRO ze skalą liniową 400/450/950 mm Wyświetlacz cyfrowy VEVOR 400/450/950 mm Zestaw wyświetlacza liniowego 3-osiowy DRO ze skalą liniową 400/450/950 mm Wyświetlacz cyfrowy VEVOR 400/450/950 mm Zestaw wyświetlacza liniowego 3-osiowy DRO ze skalą liniową 400/450/950 mm Wyświetlacz cyfrowy VEVOR 400/450/950 mm Zestaw wyświetlacza liniowego 3-osiowy DRO ze skalą liniową 400/450/950 mm
SZGZCTZ5WM16V9OI1V2

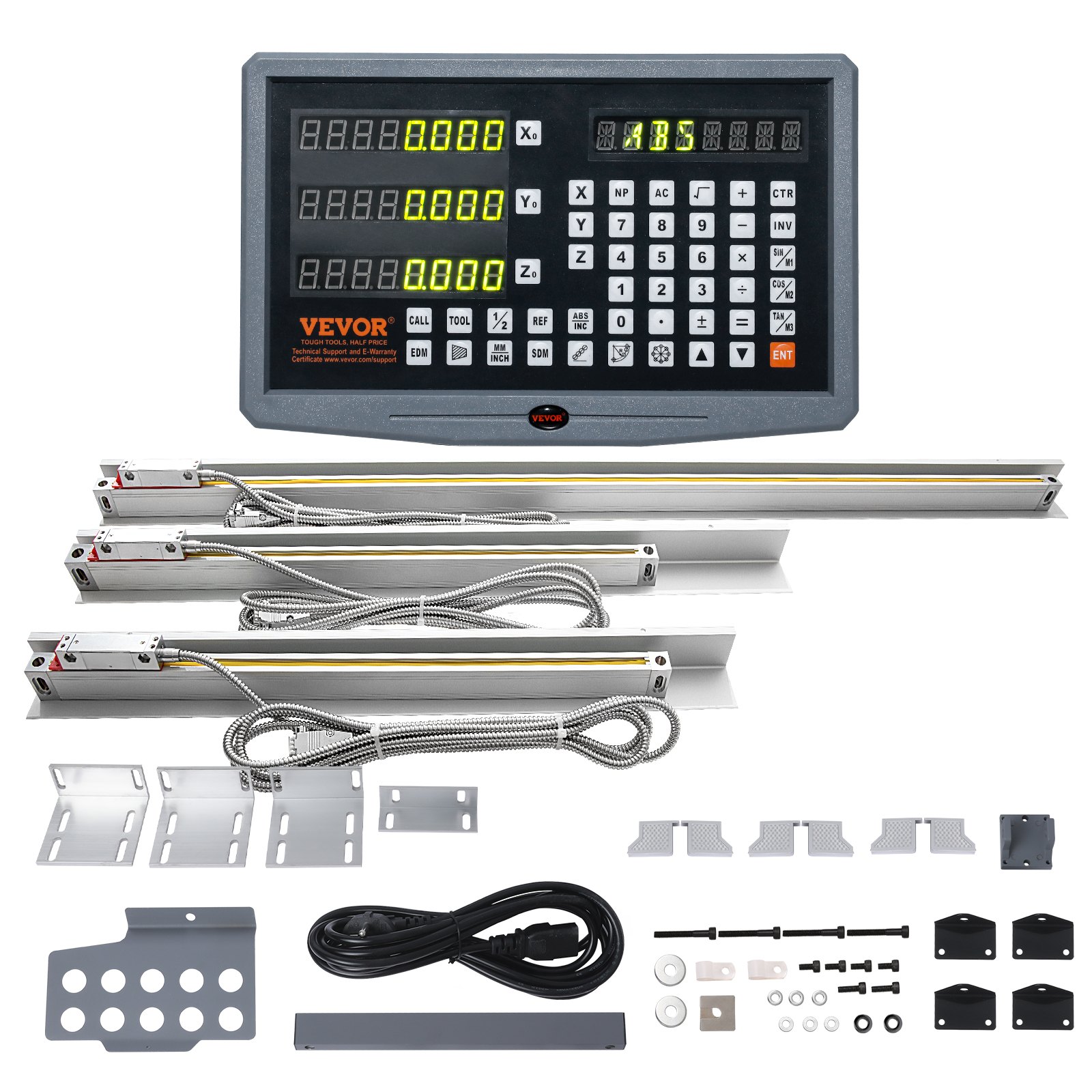

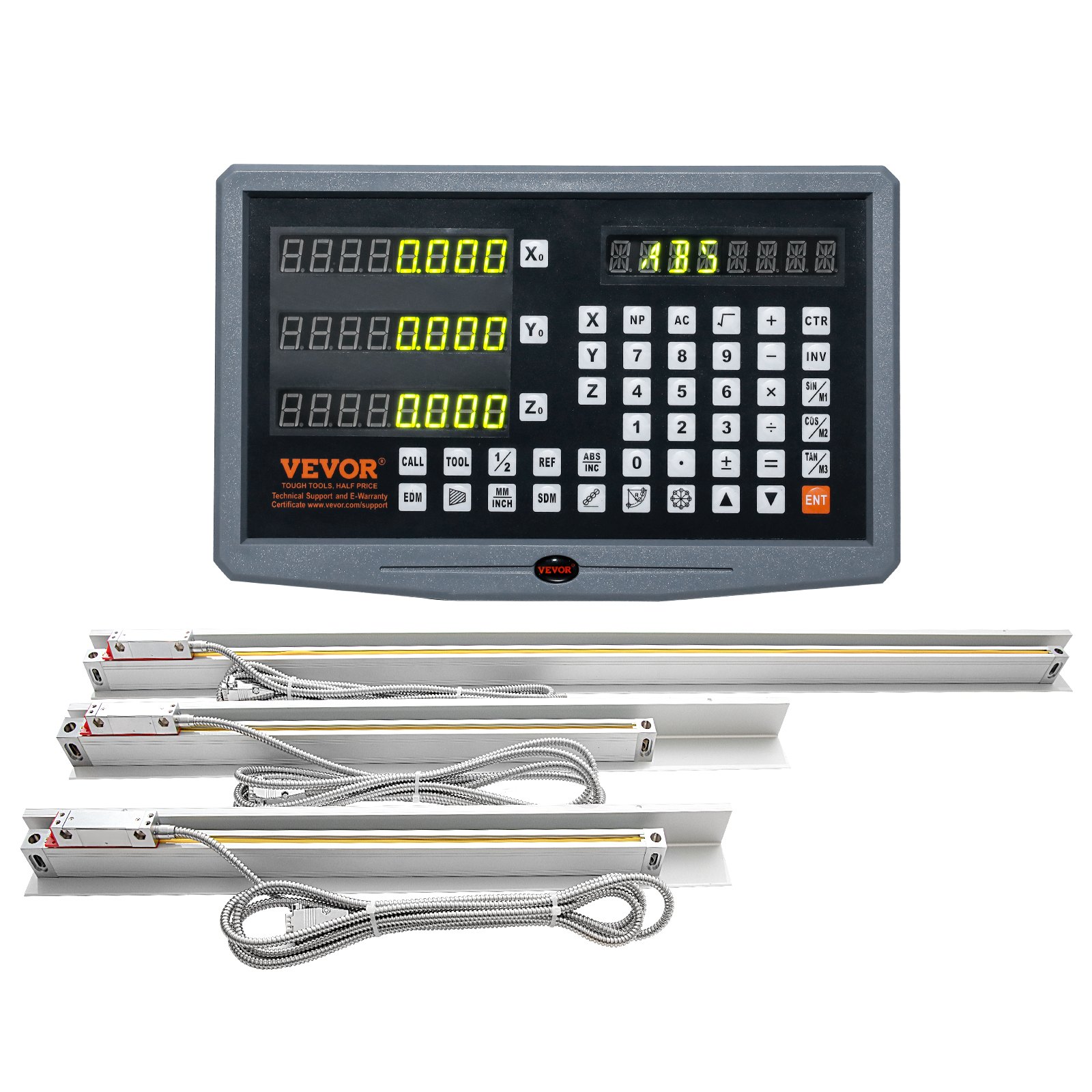

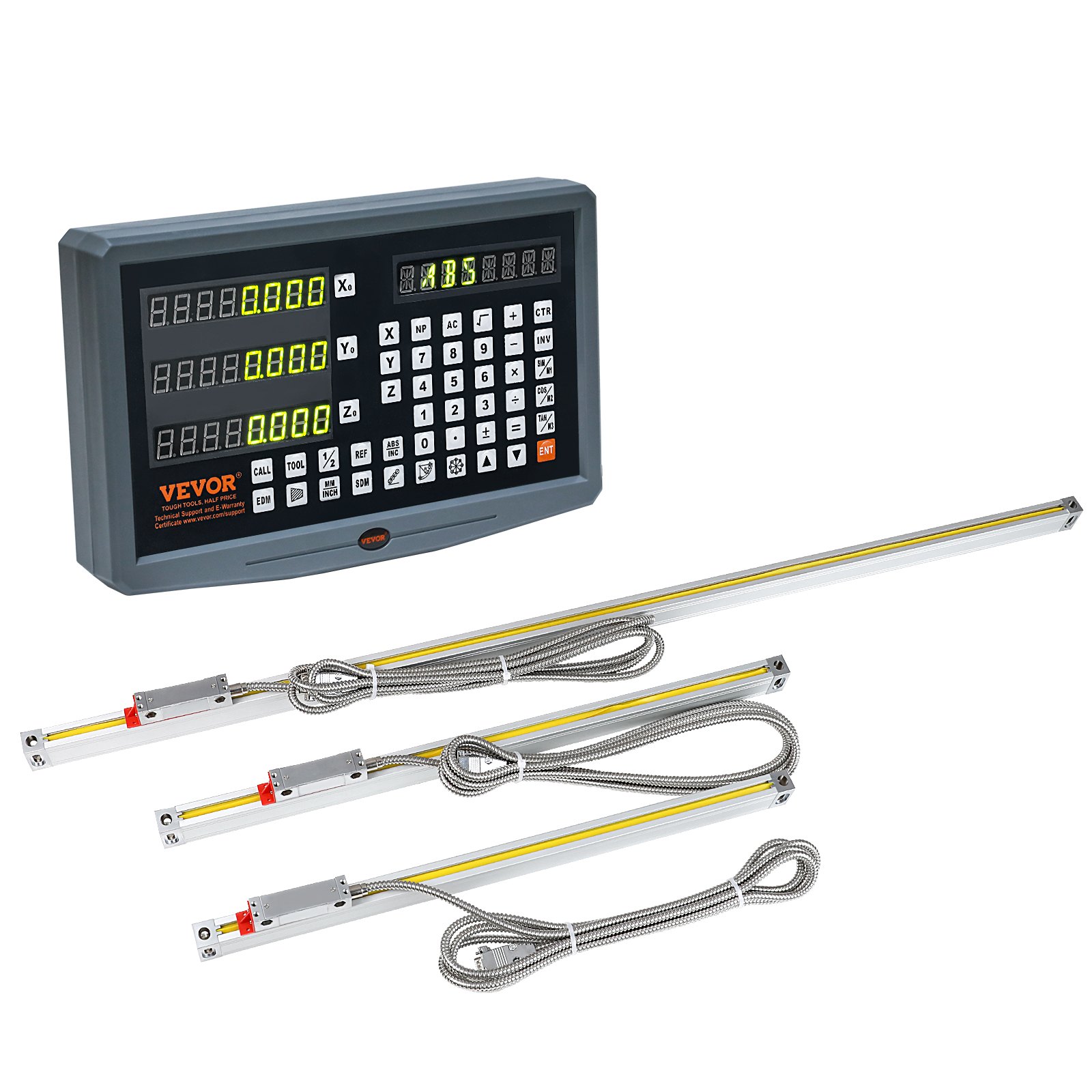

Wyświetlacz cyfrowy VEVOR 400/450/950 mm Zestaw wyświetlacza liniowego 3-osiowy DRO ze skalą liniową 400/450/950 mm

Zaoszczędź do 15% dzięki cenie PRO. Zarejestruj się, aby uzyskać bezpłatne konto PRO.

O tej pozycji

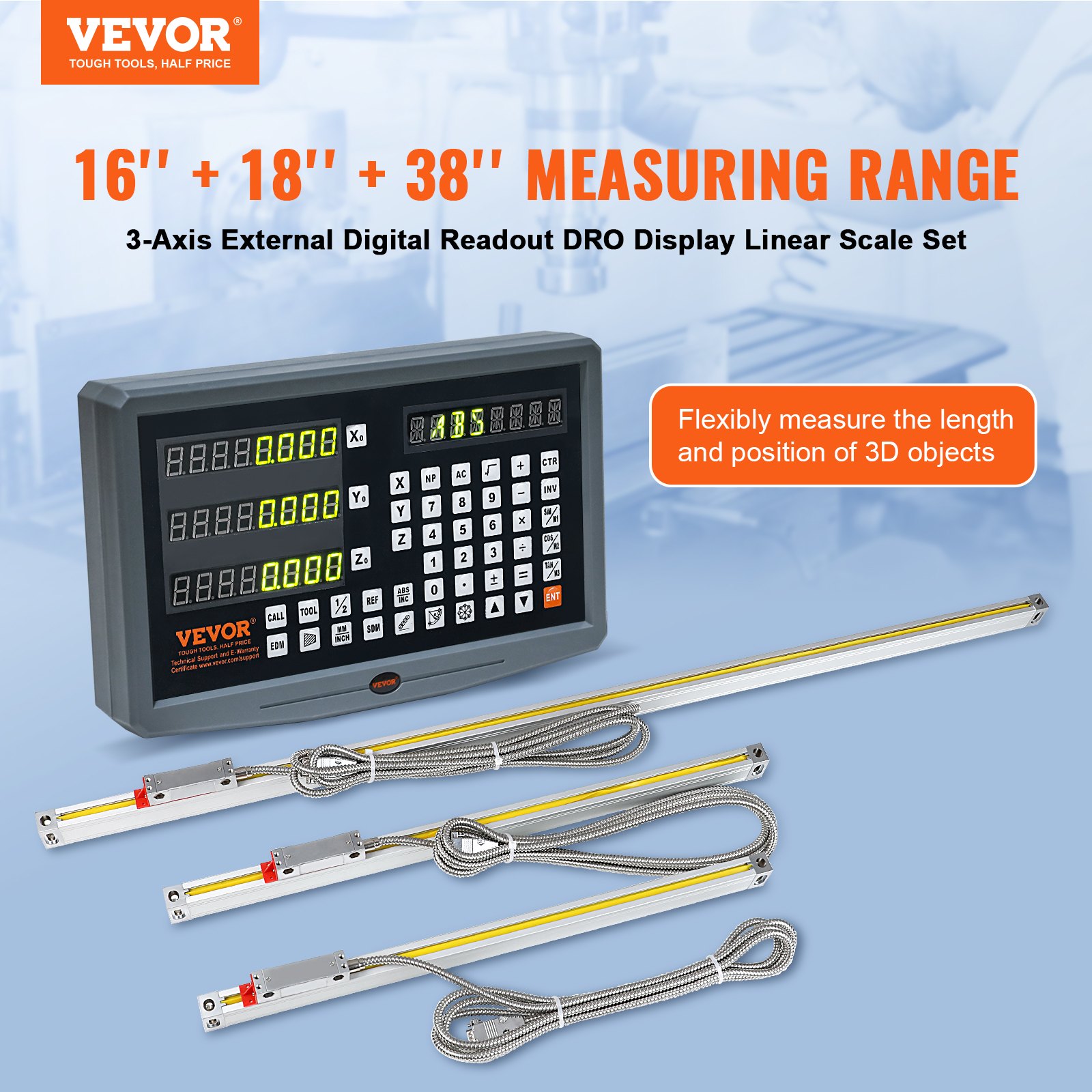

  • Długość przesuwu 16"/400 mm, 18"/450 mm, 38"/950 mm: Poznaj wszechstronność dzięki naszemu 3-osiowemu zestawowi skal liniowych, który oferuje trzy długości przesuwu: 16"/400 mm, 18"/450 mm i 38" /950 mm. Dostosuj Ułatwia procesy o wysokiej precyzji, takie jak wiercenie obwodowe.

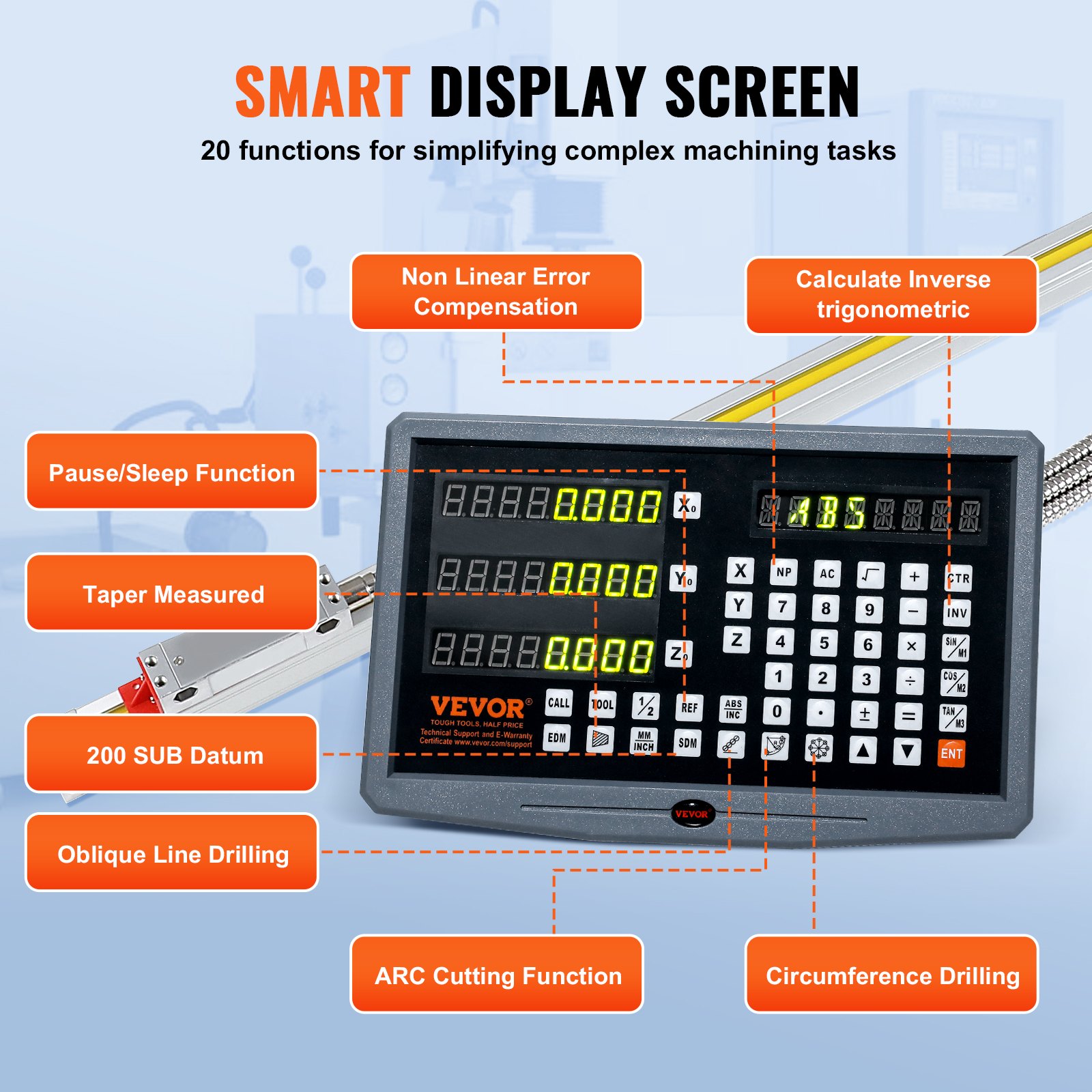

  • Wielofunkcyjny, krystalicznie czysty wyświetlacz: nasz wyświetlacz oferuje wiele podstawowych i specjalnych funkcji zapewniających wygodny pomiar i pozycjonowanie. Podstawowe funkcje obejmują standardowy pomiar danych, obliczenia, zerowanie, konwersję jednostek, pauzę, pamięć wyłączenia, nieliniową kompensację błędów i wiele innych. Funkcje specjalne obejmują funkcję cięcia ARC, wiercenie obwodowe, wiercenie ukośne i obliczanie odwrotnej funkcji trygonometrycznej.

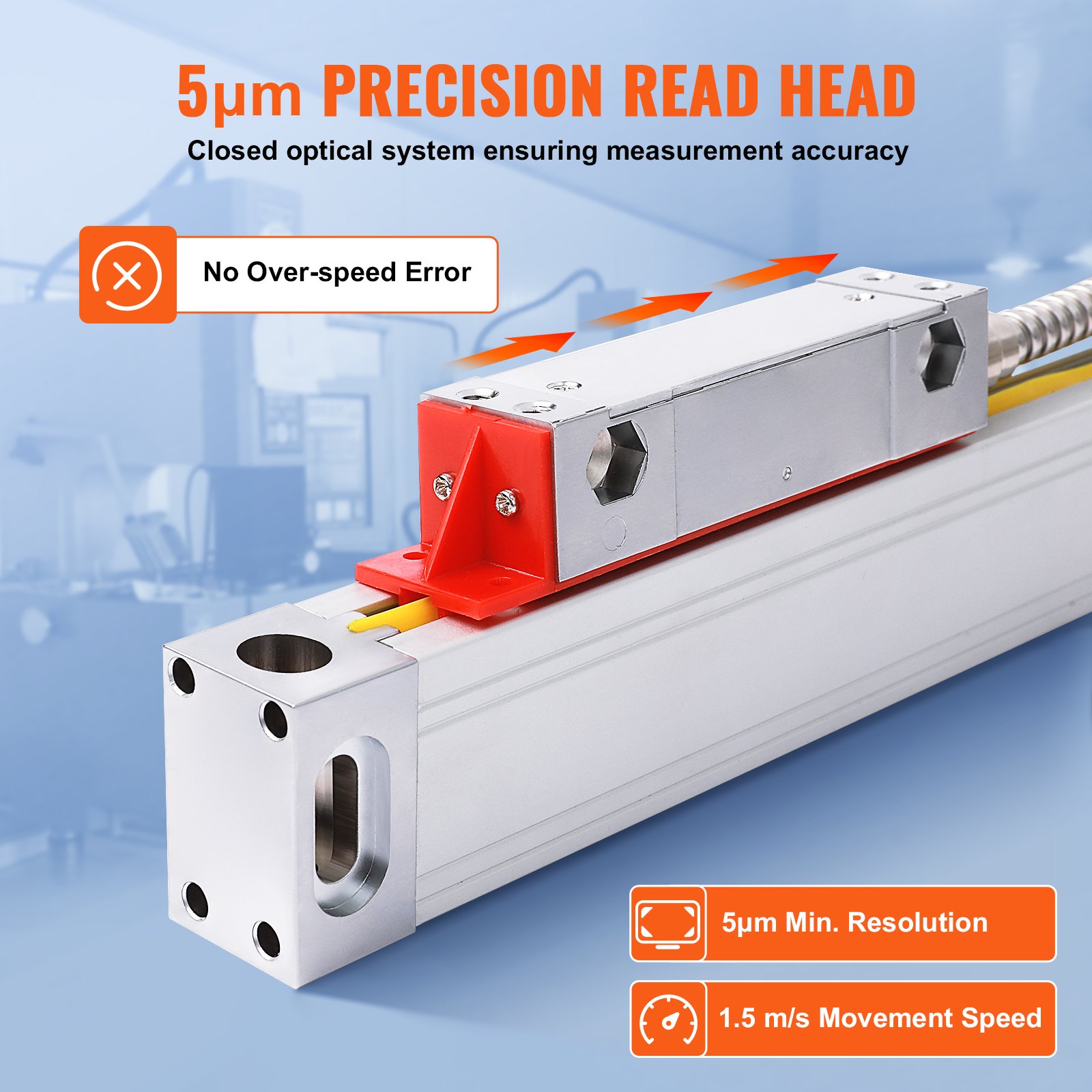

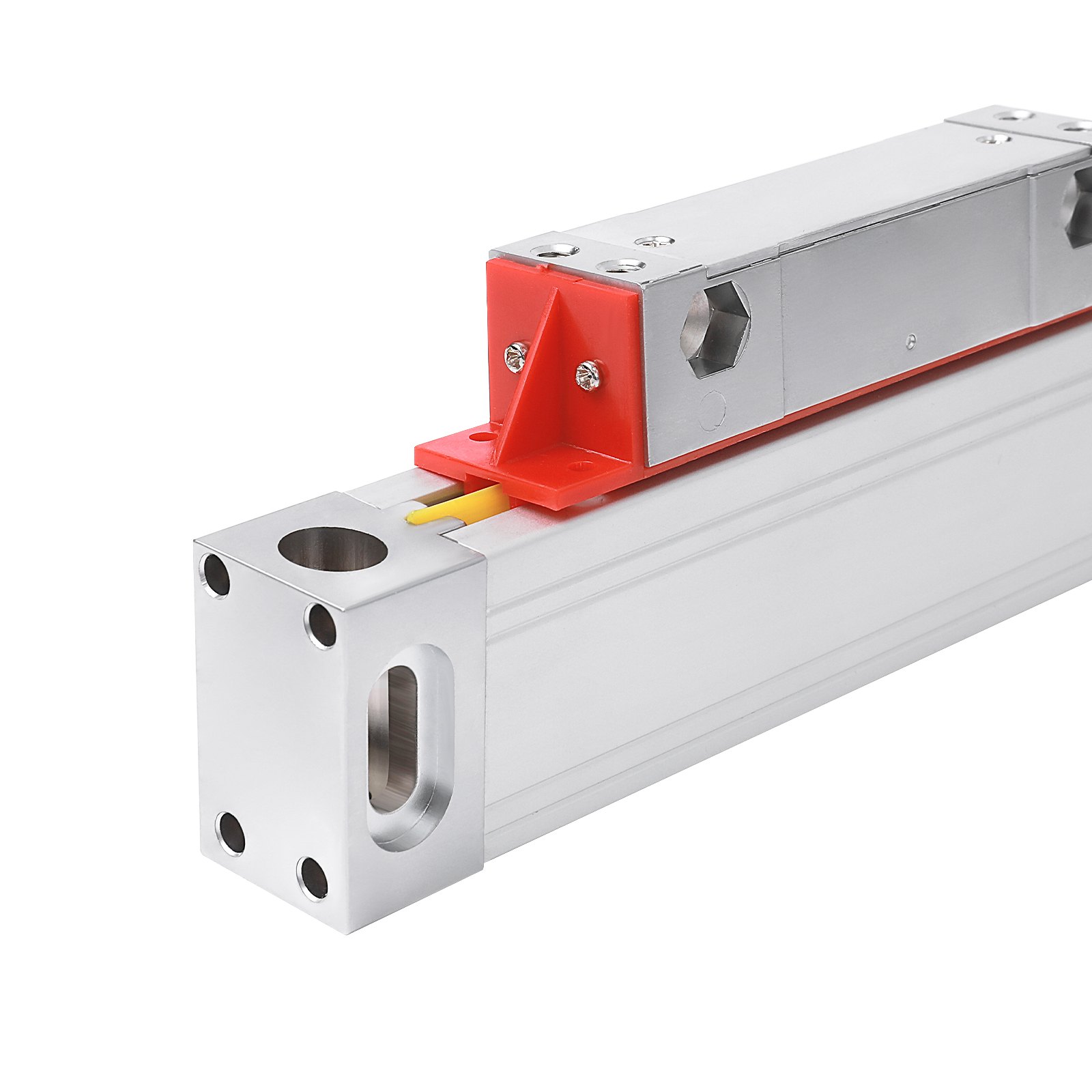

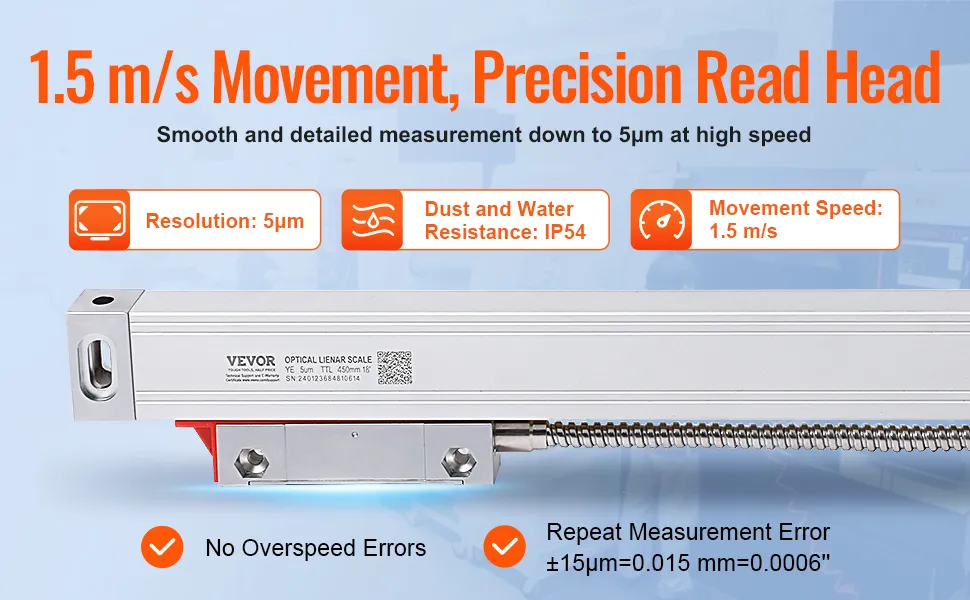

  • Precyzyjna głowica odczytująca 5 μm: nasza skala liniowa zapewnia niezwykłą minimalną rozdzielczość 5 μm. Nawet przy najdłuższym zakresie 38 cali / 950 mm błąd wynosi zaledwie 0,004 cala / 0,1 mm w pomiarach standardowych i powtarzanych. Dzięki dużej prędkości ruchu głowicy odczytowej wynoszącej 1,5 m/s nie pozostawia miejsca na błędy związane z przekroczeniem prędkości. Precyzja zdefiniowana na nowo tam, gdzie liczy się każdy mikrometr.

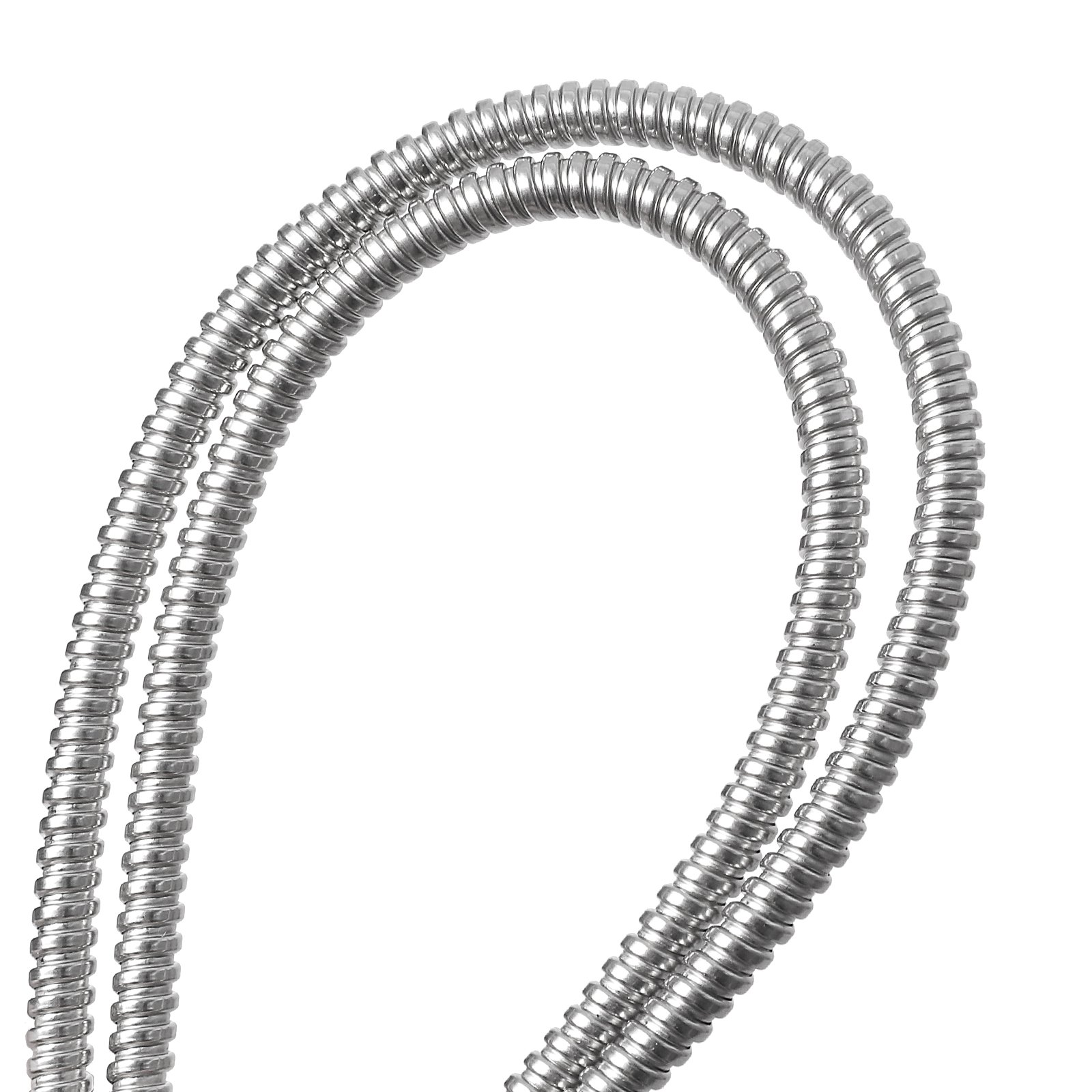

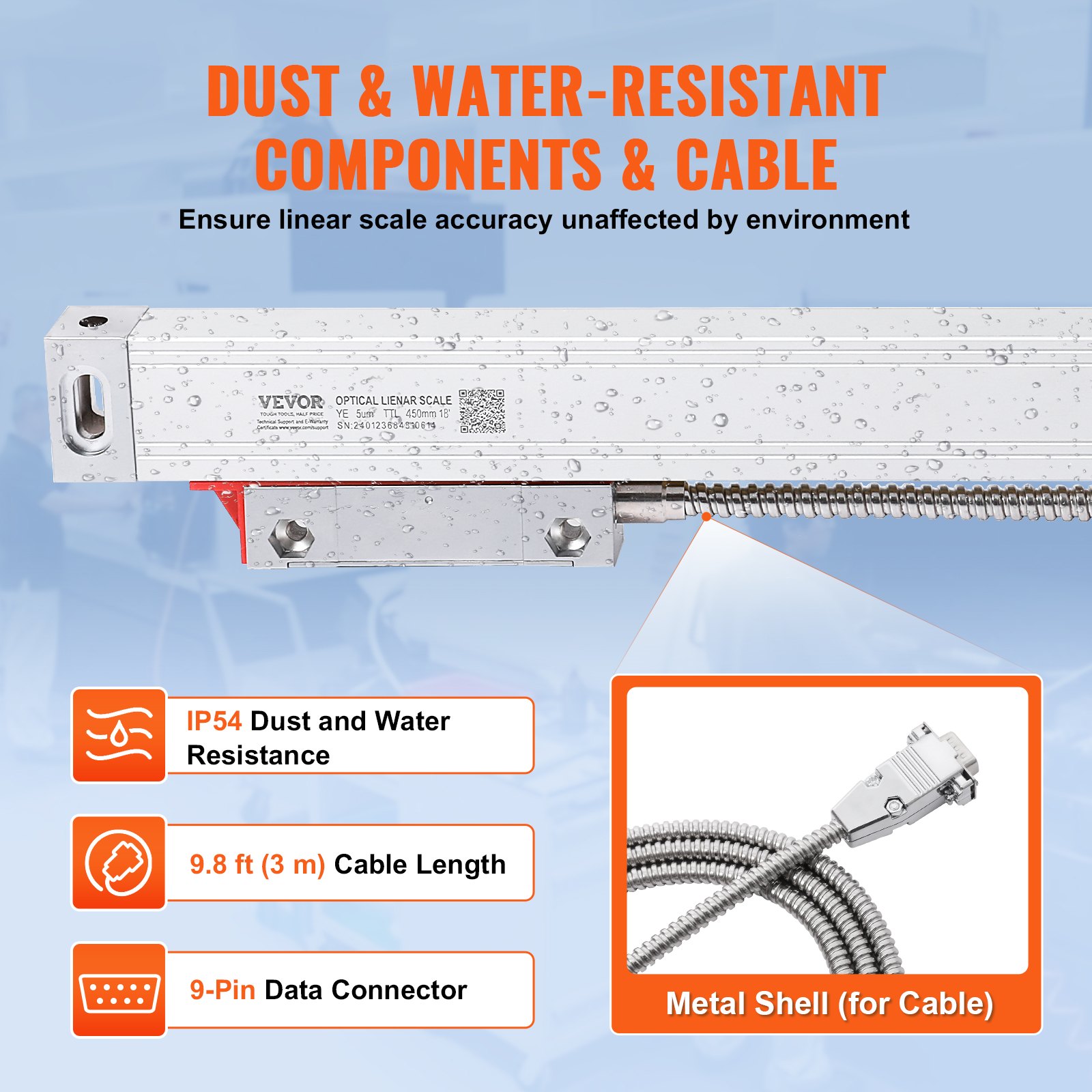

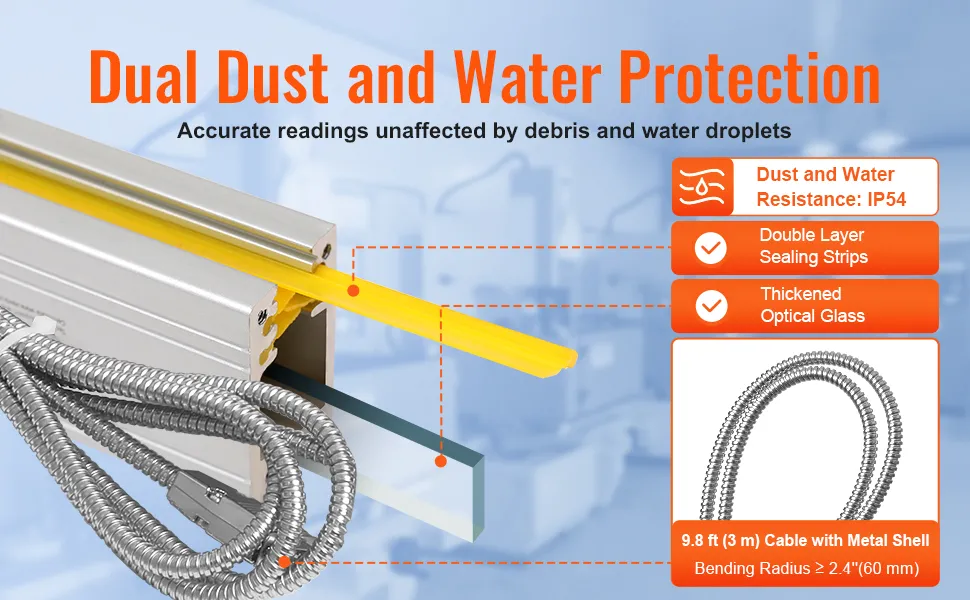

  • Ochrona przed brudem i cieczami: dzięki dwuwarstwowej uszczelce smarującej i wzmocnionej ochronie ze szkła optycznego nasza waga liniowa osiąga stopień ochrony przed kurzem i wodoodpornością IP54. Zapobiega gromadzeniu się kurzu i chroni przed rozpryskami ze wszystkich stron. Kabel sygnałowy o długości 3 m jest wyposażony w 9-pinowe złącze danych i składa się z wielu warstw ekranowanych drutów stalowych oraz miękkiej metalowej obudowy, która zapewnia doskonałą wodoodporność i odporność na zakłócenia.
  • Instalacja pionowa lub pozioma: Nasza skala liniowa jest przeznaczona zarówno do montażu pionowego, jak i poziomego na różnych obrabiarkach, w tym maszynach do cięcia i wiercenia. Podczas instalowania skali należy upewnić się, że kierunek wysokości jest równoległy do ​​powierzchni montażowej stołu warsztatowego z tolerancją mniejszą niż 0,1 mm. Należy pamiętać, że w przypadku montażu na niewykończonych powierzchniach, z tyłu wagi należy przymocować podkładki w celu stabilizacji. Dokładna konfiguracja będzie dziecinnie prosta.

Najczęściej Kupowane Razem

Ludzie, którzy kupili ten przedmiot, kupili również

Wyświetlacz cyfrowy VEVOR 400/450/950 mm Zestaw wyświetlacza liniowego 3-osiowy DRO ze skalą liniową 400/450/950 mm
Zestaw 3-osiowej skali liniowej
Nasz 3-osiowy zestaw skal liniowych umożliwia pełnowymiarowe pomiary skomplikowanych detali z rozdzielczością 10 μm. Posiada szybko reagujący wyświetlacz zapewniający dokładne dane i 3 długości przesuwu 400 mm, 450 mm i 950 mm. Precyzja w obróbce 3D.
Wybierz jedną z 3 długości przesuwu: 400 mm, 450 mm, 950 mm. Jeśli Twoje potrzeby wykraczają poza pomiary długości na obrabiarkach i obejmują złożone zadania, takie jak funkcje cięcia łukowego i wiercenie po przekątnej, nasz zestaw skal liniowych jest właśnie dla Ciebie.

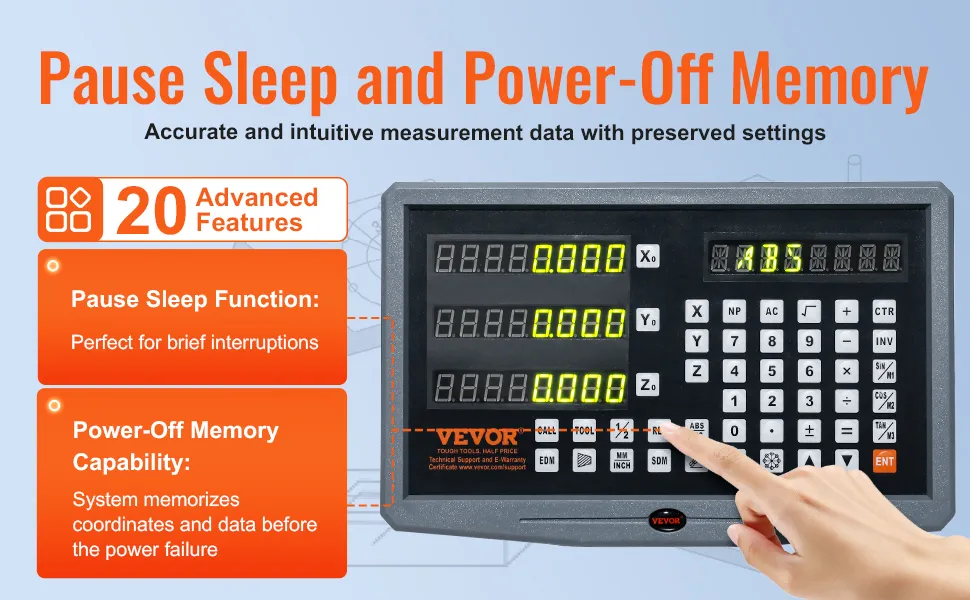

Nasz wyświetlacz upraszcza obsługę dzięki takim funkcjom, jak cięcie łukowe i wiercenie obwodowe, a funkcja uśpienia zapewnia zachowanie ustawień i danych nawet po opuszczeniu środowiska pracy lub wystąpieniu przerwy w dostawie prądu.
Nasza skala liniowa z siatką jest uosobieniem precyzji pomiaru. Dzięki rozdzielczości 5 μm, błyskawicznej reakcji i wyświetlaniu danych w czasie rzeczywistym na ekranie osiąga zdumiewająco niskie błędy wynoszące zaledwie ± 15 μm (0,0006 cala). Poczuj precyzję jak nigdy dotąd.
Nasza waga liniowa charakteryzuje się wszechstronną, pyło- i wodoodporną konstrukcją. W odróżnieniu od zwykłych uszczelek jednowarstwowych, nasza skala liniowa posiada zoptymalizowane uszczelnienie dwuwarstwowe, co zwiększa jej odporność na wpływy zewnętrzne.

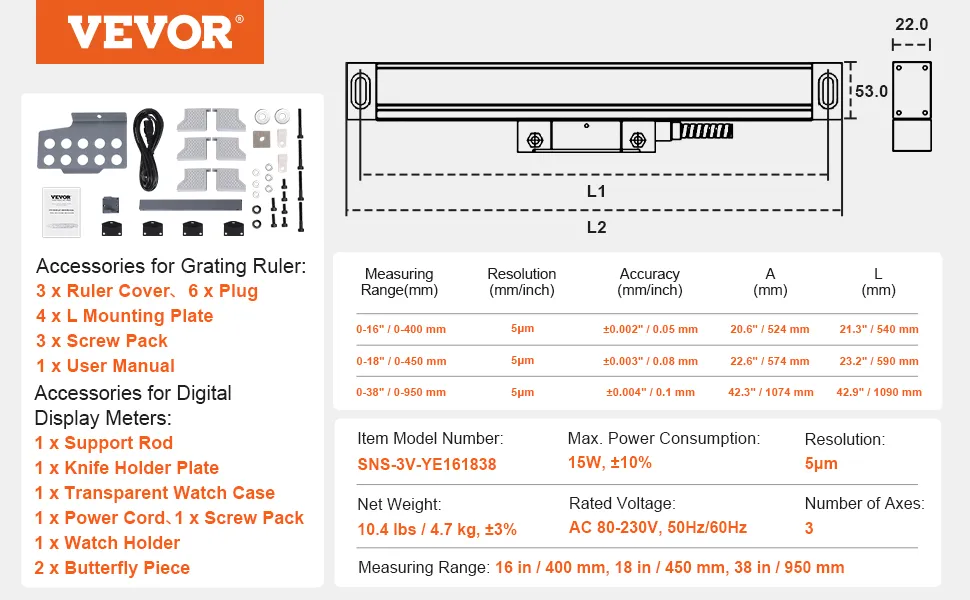

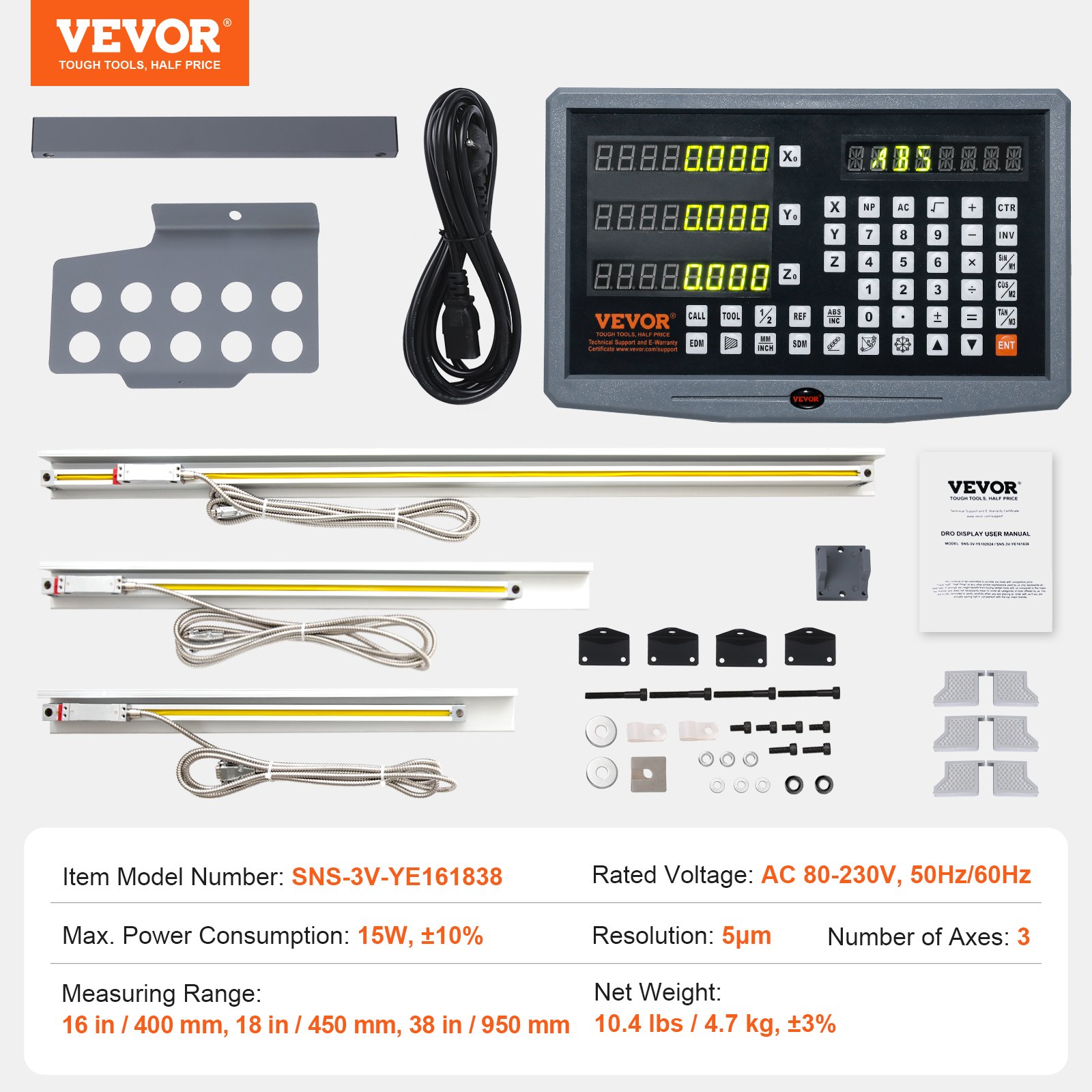

Specyfikacja

Numer modelu przedmiotu
SNS-3V-YE161838
Napięcie znamionowe
AC 80-230 V, 50 Hz/60 Hz
Maks. pobór mocy
15 W, ±10%
Rozdzielczość
5μm
Liczba osi
3
Zakres pomiarowy
16"/400mm, 18"/450mm, 38"/950mm
Masa netto
10,4 funta / 4,7 kg, ±3%
Pytania i odpowiedzi
Typowe pytania dotyczące produktów: Czy produkt jest trwały? ...

Opinie klientów

Oceny według funkcji

  • 4.7
  • 4.8
  • 4.8
  • 4.9
  • Zobacz więcej Zobacz mniej
14 Recenzje
Wyczyść filtry
Ronald Tetzlaff Ronald Tetzlaff
Retired
Items was well packed and delivery was fairly fast. DRO setup was easy and product works great, had to shorten one of the linear scales and all went well.
Derrick Derrick
Fabricator
This was used to replace a DRO that no longer worked on my mill and it was easy to adapt to mine. Just drilled and tapped new holes in the casting using and indicator to keep each scale straight to its axis.
Bob Bob
Home Hobbyist
Good price and works really great. Takes a little time for instillation but it turned out really well. The only thing they need to let you know is that you don't need to order the scale sizes that they offer as a package. They have a lot of different scales sizes you can order separately that would fit your particular machine without cutting scales to fit. That would have saved me from cutting scales to size. Need some sales representation to talk to before ordering. But mine turned out well and works great.
Jon Jon
Owner
Very quick delivery, quality looks good. Happy with purchase. Have not had the time to install as of yet, but look forward to using it. Positive transaction.
Ranged Ranged
Good DRO, Great Price
A great price on a DRO kit that includes 3 scales. Saved money by getting this kit for my PM-30'ish mill, and cutting the scales to fit, Actually, I only needed to cut the X-axes scale (cut down from the 750mm scale). Installation instructions leave a lot to be desired, but the operators manual for the DRO is very detailed. All the mounting hardware is included, but not very versatile. I ended up 3D printing brackets and spacers for a "better" fit on the scales. Build quality... no complaints. Display is large and clear, buttons are easy to read and use. Comes with a clear cover for the DRO. Powered from 110v outlet. Seems accurate for what I use it for (hobbyist). Although it could be much more accurate than what I am capable of measuring. On cutting scales, there seems to be two different methods out there. One where you take one end off the scale and cut the extrusion, glass and all. The other where you disassemble the scale, remove the glass and cut it separate. I used the latter method and had no problems. Although I did break a tap on one of the ridiculously small end cap screws. If I did it again, I would probably just epoxy the endcap back in place.
Wonka Wonka
Good scales for the money
Purchased 170mm, 320mm and 520mm scales. Accurate enough for the typical hobbyist. Nicely extruded cover for the scales to protect from fluids, bet the included mounting hardware is nothing special.
Non Stop Horizon Non Stop Horizon
Excellent value for the money.
As a home hobby machiinist with a serious addiction to making chips fly I inpressed so far. With reolution to .0002 it has been surprisingly accurate. I rely on it quite a bit now, less and less stoping every pass for precision parts to stop and measure, abd no more counting handwheel turns. When buying it comes with some generic mounting hatdware but its not all that great and remember you are a home machinist make the brackets and enjoy the time in the shop. My mill sees about 30 hours of use weekly so far this dro has been durableAlso remember when mounting the linear scales they are optical glass rods. Free travel with no binding or loading along with true travel and mounting parralel to the axis is very important. Replacement optical glass scales are on averge $200 per scale. This DRO with 3 linear scales is a great value.
Non Stop Horizon Non Stop Horizon
Excellent value for the money.
As a home hobby machiinist with a serious addiction to making chips fly I’m inpressed so far. With reolution to .0002 it has been surprisingly accurate. I rely on it quite a bit now, less and less stoping every pass for precision parts to stop and measure, abd no more counting handwheel turns. When buying it comes with some generic mounting hatdware but its not all that great and remember you are a home machinist make the brackets and enjoy the time in the shop. My mill sees about 30 hours of use weekly so far this dro has been durableAlso remember when mounting the linear scales they are optical glass rods. Free travel with no binding or loading along with true travel and mounting parralel to the axis is very important. Replacement optical glass scales are on averge $200 per scale. This DRO with 3 linear scales is a great value.
Non Stop Horizon Non Stop Horizon
A little fussy to set up, but works great
Installed in an afternoon. Most of the supplied hardware was of no use, but a few bucks at the hardware store and I was off to the races.As others have mentioned, the manual is almost useless. If you have some understanding of what a dro does, then it is good enough to fill in the blanks.Some of the buttons are abbreviated in an odd way (e.g. CTR for calculator), but it's not that big of a hurdle. Just remember that English is not this things first language.I had to set the resolution of the scales to 0.2 so they would read correctly. Out of the box it was showing 5 inches of travel per inch. That was a frightening 10 minutes, but everything checks out fine now.I haven't played with all the functions yet, but so far everything works great.
Joe Smith Joe Smith
Very impressed with this DRO
It is everything they say it is. No instructions for installation but if you are a machinist then it's no different than any other installation. The scales are glass so as always, be careful to not drop or just slap them on. You must make sure they are true and indicated to the axis. I personally like the owner's manual. It was just English and I didn't have to thumb through 5 other languages. So far the DRO works fabulously.
